One Channel FHD Video Filter-SC6619B

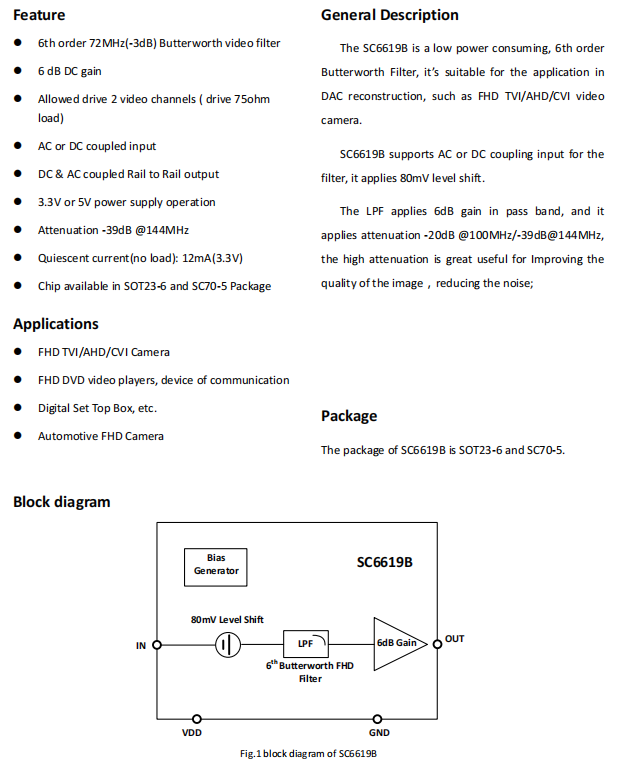

Feature

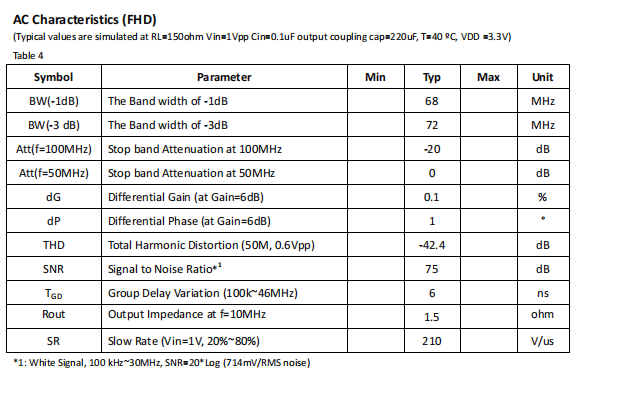

6th order 72MHz(-3dB) Butterworth video filter
6 dB DC gain
Allowed drive 2 video channels ( drive 75ohm load)

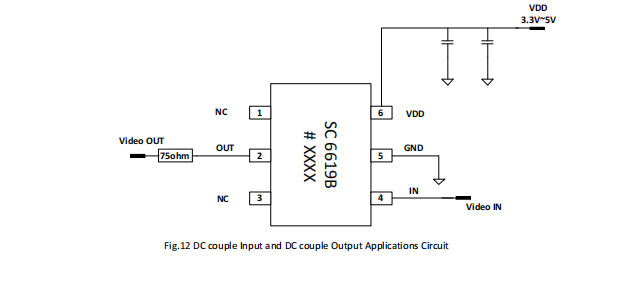

AC or DC coupled input
DC & AC coupled Rail to Rail output

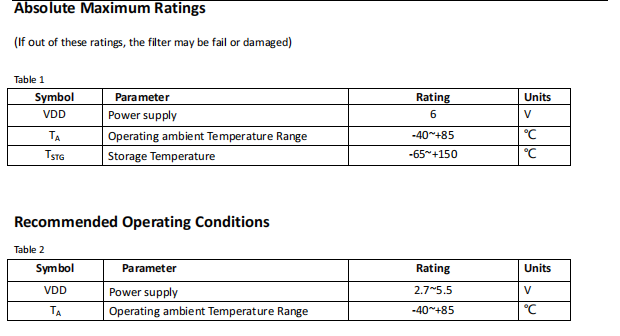

3.3V or 5V power supply operation
Attenuation -39dB @144MHz

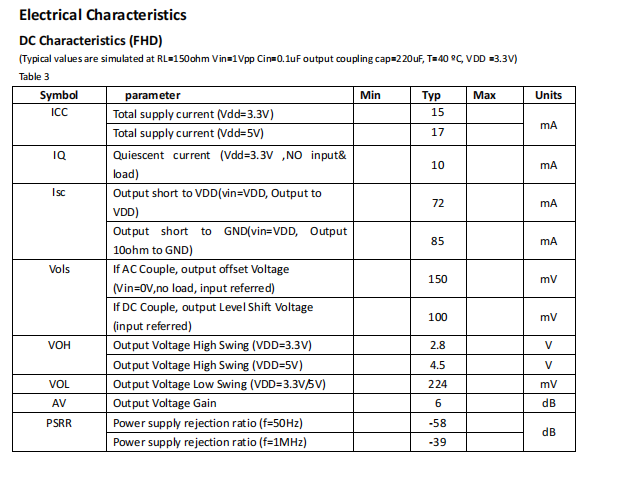

Quiescent current(no load): 12mA(3.3V)

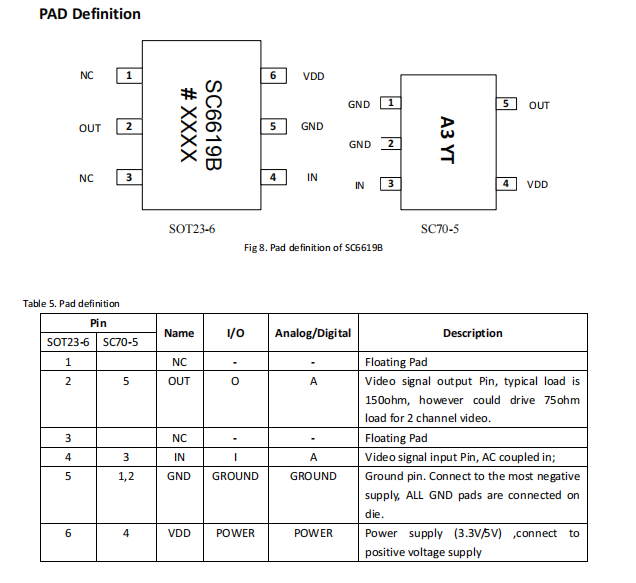

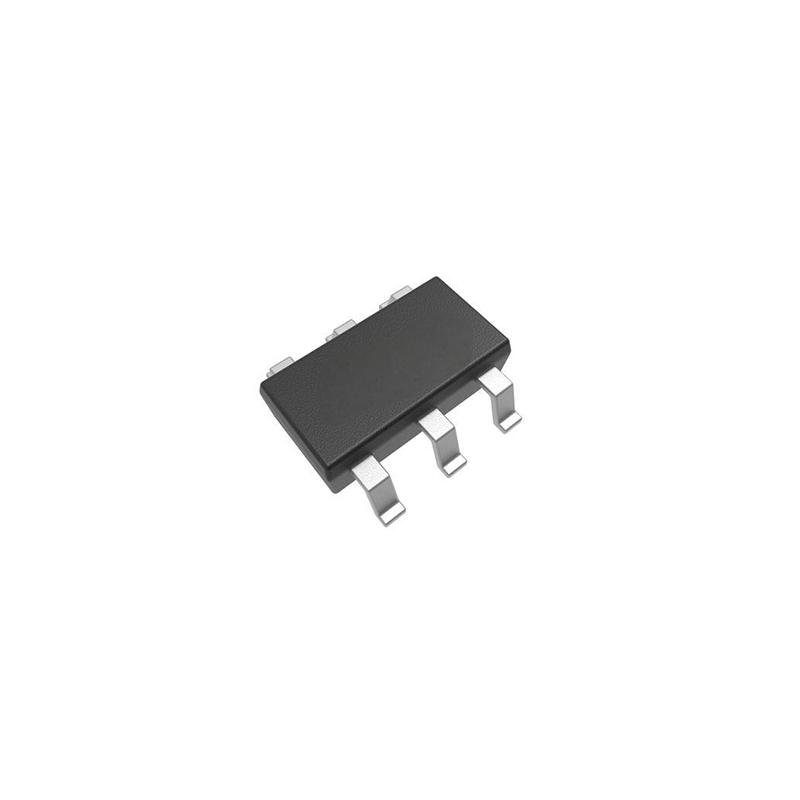

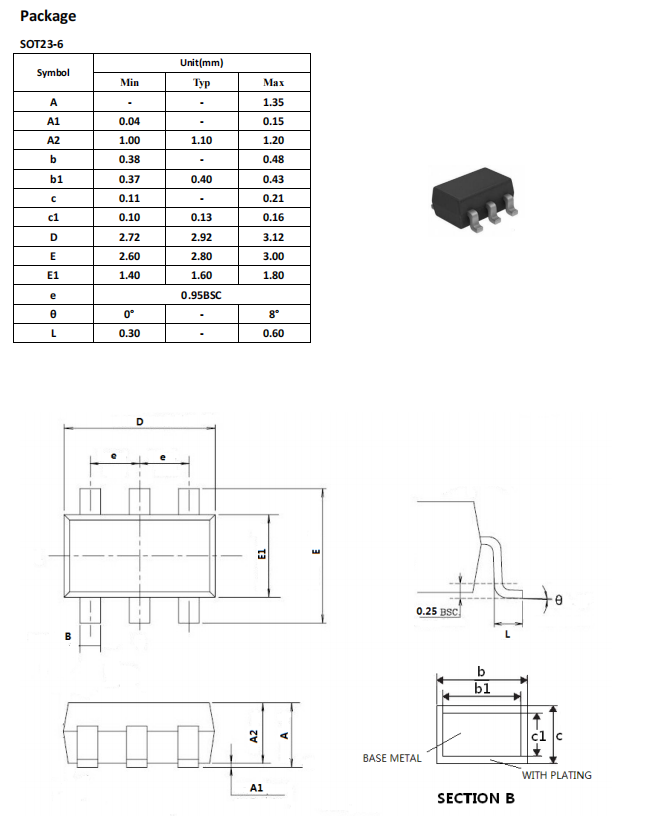

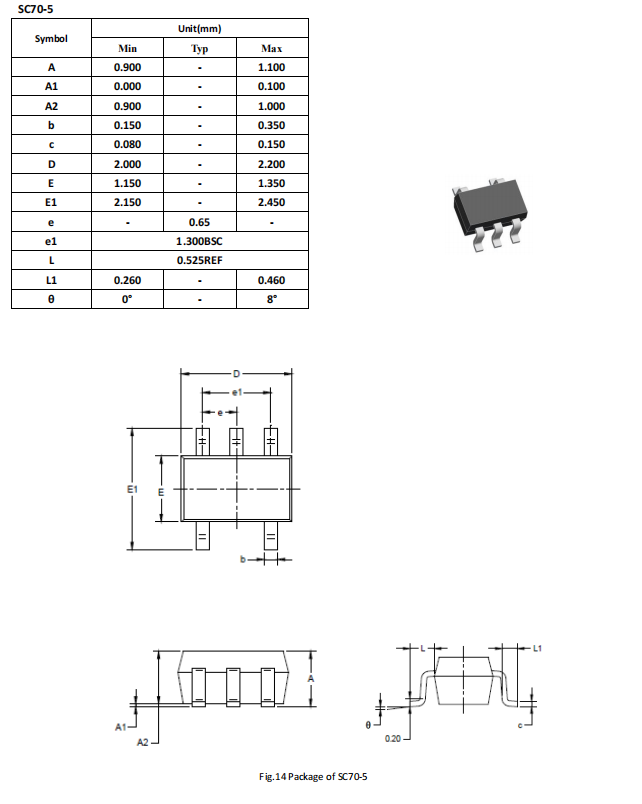

Chip available in SOT23-6 and SC70-5 Package
